Product:
L foot
Wood screw
EPDM rubber
Material:
Aluminum
stainless steel or steel
EPDM
 |
Snow Load 1.4kn/m2 L Foot Solar Roof Mounting System Racking for Multi Size Metal Roof
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Tripsolar, Tripsolar |
| Model Number: | TP-DS-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $0.50/sets 1-499 sets |
| Packaging Details: | Courier/Cartons/Pallets/LCL or according to customer's choice |
| Supply Ability: | 100000 Pallet/Pallets per Month |
|
Detail Information |
|||
| Wind Load: | 60m/s | Snow Load: | 1.4kn/m2 |
|---|---|---|---|
| Warranty: | 10 Years, 10 Years | Surface Treatment: | Anodized, Anodized/Aluminum Andized/Hot-dip Galvanized |
| Product Name: | Solar Mounting Double End Dowel/L Foot Screw/Hanger Bolt | Application: | Commercial/Metal Roof/Ground/Solar Panel Mounting |
| Material: | Stainless Steel/Aluminum/Galvanized Steel/Carbon Steel | Color: | Natural |
| Panel Orientation: | Landscape/Portrait | Duration: | 25 Years Life Span |
| Certificate: | ISO9001/CE/AS/NZS 1170/TUV | Port: | Xiamen Port |
Product Description

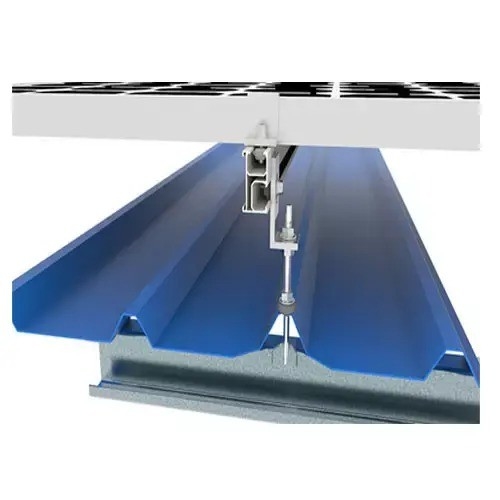

Roof Hanger Bolt---for Tin Roof Mount
Tripsolar roof mounting system is suitable for most types of roofs. It provides a simple and economical solution for the installation of all the framed and frameless solar panels on the market.
The simple and solid mounting structure enables it to make full use of the existing tin roof and tile roof, the highly efficiency and dense components greatly increase the installed capacity, so as to achieve energy saving and emission reduction.

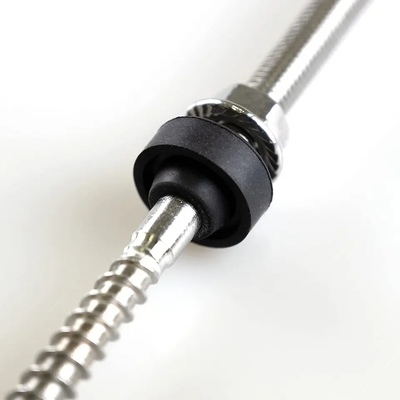

Hanger bolt is the important component of tile roof solar mounting system, it can be used in not only tin roof, but also in tile roof. With waterproof rubber pads, even it penetrates the roof, it can maintain the good waterproof performance of the roof.
The simple and solid mounting structure enables it to make full use of the existing tin roof and tile roof, the highly efficiency and dense components greatly increase the installed capacity, so as to achieve energy saving and emission reduction.
Hanger bolt is the important component of tile roof solar mounting system, it can be used in not only tin roof, but also in tile roof. With waterproof rubber pads, even it penetrates the roof, it can maintain the good waterproof performance of the roof.

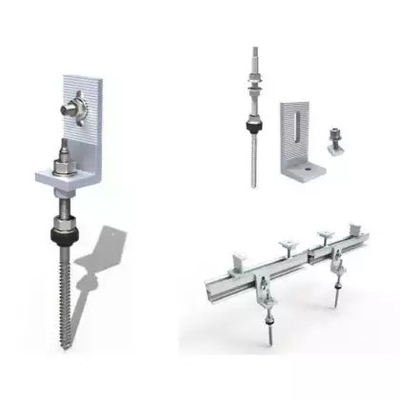

Whole set of mounting brackets as below

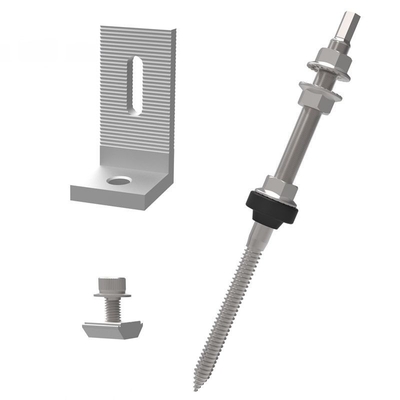

Product:
L foot
Pointed/Flat hanger bolt
Material:
Aluminum
stainless steel
L foot
Pointed/Flat hanger bolt
Material:
Aluminum
stainless steel

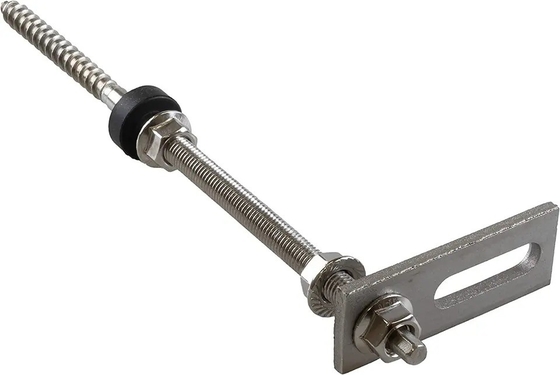

Product:
Plate
Pointed/Flat hanger bolt
Material:
stainless steel
Plate
Pointed/Flat hanger bolt
Material:
stainless steel
Different sizes of bolt in stock:
Model | Specification | One set include: 1 double head hanger bolt, 3 flange nuts, 1 related rubber pad. |
TP-TB01 | M10*200mm | |
TP-TB02 | M10*250mm | |
TP-TB03 | M10*300mm | |
TP-TB04 | M12*200mm | |
TP-TB05 | M12*250mm | |
TP-TB06 | M12*300mm |
The related components of Tile Roof Solar System:
We have so many types of Rail.
The most popular type is the type on picture with two openings.
One opening for hanger bolt, another opening for middle and end clamp, so convenient.
The most popular type is the type on picture with two openings.
One opening for hanger bolt, another opening for middle and end clamp, so convenient.
Roof Hook:
Roof hooks are used to secure the roof to the solar system rails.
We have so many types of hooks.
We have so many types of hooks.
The middle clamp and end clamp is used to secure the solar panel and the rail.

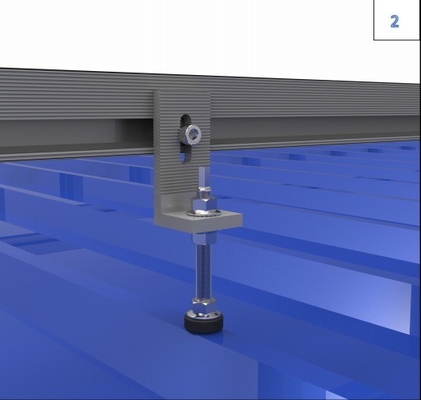

It is used to secure the rail and roof.
Xiamen Trip Solar Trading CO., LTD is a subsidiary corporation of Xiamen Trip Solar Energy Group, an experienced manufacturer and exporter of solar roof mounting system, ground mounting system, solar carport system, RV solar mounting brackets and accessories with production plant in Xiamen, China since 2012.
Our factory embodies the complete process of R&D, design, production, sale,installation and after-sales service, offering the steady, reliable and cost-efficient solar PV mounting system solutions. As be known for rich experience and high quality, Trip Solar's products have traveled to more than 80 countries and regions since been established. "Quality First, Best Faith Priority" is the basic principles of our company. The characteristics of high quality and low price are also an important reason for our development. As long as received your requests, we will try our best to satisfied you.
Q:Why choose us?
A: We are professional manufacturer, and we can provide the best product, competitive price and excellent service.
Q: Is customization available?
A: Yes, according to your detailed drawings you provide or our design made by engineer according to your requirements.
Q: What's your best price?
A: It is according to your quantity and product details, the price will be favorable with the mass quantity.
Q: What about the delivery time?
A: It depends on your order quantity and requirement. Usually 7-15 working days.
Q: Can we visit your factory to inspect the goods for the order?
A: Welcome to visit our factory to inspect the quality. We sincerely hope to establish a honest business relationship.
If you have any interest in our products, please do not hesitate to contact me.
Want to Know more details about this product
