Product Details:

Place of Origin: FUJ
Brand Name: Tripsolar
Model Number: TP-GS-SC-AL

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: $0.16/watts 1000-9999 watts
Packaging Details: Carton/Pallet
Supply Ability: 10000000 Watt/Watts per Month
Get Best Price Contact Now

Detail Information

Wind Load: 60m/s Snow Load: 1.4KN/m2
Warranty: 10 Years, 10 Years Surface Treatment: Anodized, Anodized
Product Name: Aluminum Solar Carport Material: AL6005-T5
Application: Solar Power Carport Color: Sliver Or Customization
Certificate: CE Service Life: 25 Years
MOQ: 1 Set Tilt Angle: 0-60 Degree
Port: Xiamen Port

Product Description

Products Description

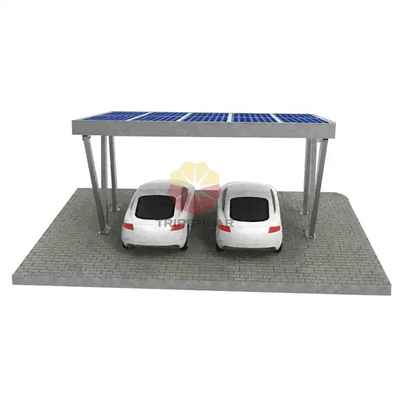

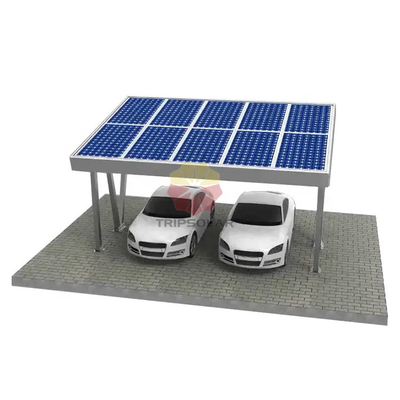

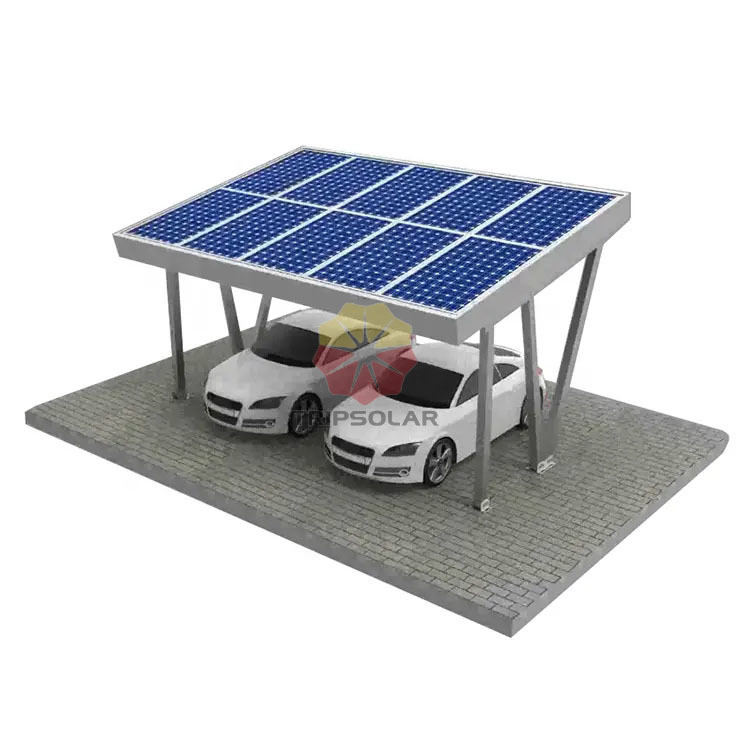

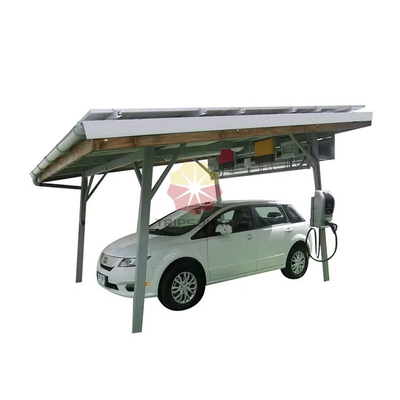

Aluminum Solar Carport

The whole structure looks simple, generous and beautiful. The shed are suitable for application in shopping mall, company, hospital, government, parks, etc. Not only can meet the parking demand, and produce grid power, recover costs and make a profit.

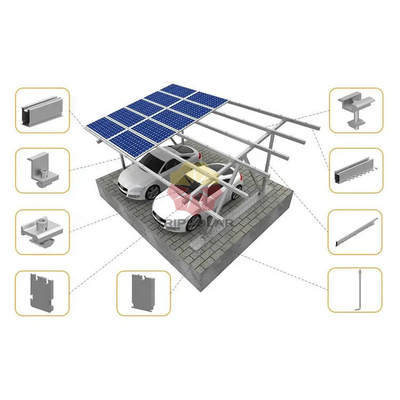

The frame is composed of foundation bolt, post, beam, rail, rail splice kit, high strength bolt. Main materials used: Al6005-T5 aluminum alloy and SUS304 stainless steel. The surface of aluminum alloy is treated by anodic oxidation. All components and accessories are rust proof.
TP-AC01
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 0
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 1
TP-AC02
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 2
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 3
Technical Parameter
Item
Details
Install Site
Open Field
Tilt Angle
3deg~ 15deg
Max Wind Speed
up to 60m/s
Snow Load
up to150cm
Standards
AS/NZS 1170 & DIN 1055 & Other
Distance between two poles
5400mm or above
Solar Panel
Framed or Frameless
Solar Panel Orientation
Landscape, Portrait
Solar Panel Array
Customized
Foundation
Foundation bolt assembly in cement block
Main Material
Aluminum alloy & SUS304
Color
Natural
Anti-corrosive
Anodized & Galvanized
Warranty
10 years warranty
Send inquiry to us, we will give you the suitable solution.(drawing, quotation, installation and produce video)
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 4
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 5
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 6
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 7
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 8
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 9
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 10
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 11
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 12
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 13
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 14
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 15
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 16

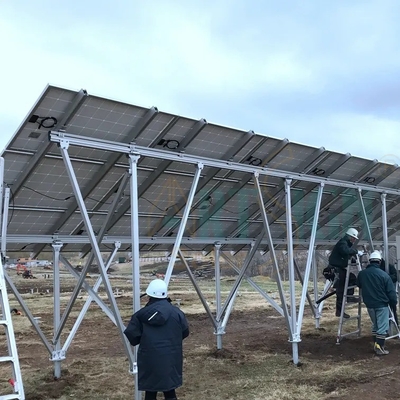

Installation Case
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 17
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 18
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 19
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 20
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 21
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 22
Test Report
Test Method:
EN 573-3:2019, GB/T 7999-2015, EN 755-2:2013, ISO 6892-1:2019, EN 755-8:2008, EN 755-2:2013,
ISO 6507-1:2018, EN 755-2:2013, ISO 6506-1:2014
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 23
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 24
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 25
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 26
Packaging & Delivery
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 27
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 28
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 29
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 30
Related Products
Company Profile
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 31
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 32
Customizable Carport Solar System Pergola with 60m/s Wind Load Tilt Angle 0-60 degree 33
About Trip Solar:
Xiamen Tripsolar industry and trade Co., Ltd.. is a high-tech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Trip Solar members devote themselves to research, design, manufacture and sell the steady, trustable and cost-efficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering Trip Solar products have been installed in more than 100 countries and regions since it established. Our Mission: Our mission is to provide the best renewable energy solution for every energy customer worldwide and deliver total solutions, excellent quality and customer satisfaction. Our Vision: Our vision is to become the preferred supplier of solar mounting systems (for residential & commercial scale projects) to solar installers both nationally and internationally. Our Goal: Our goal is to manufacture the best PV Mounting System in the industry, and to become a household name synonymous with superior quality, innovative excellence, system durability, time effectiveness.
