Tile angle: 15- 30 degree
Material: Aluminum
Anti-corrosive: Anodized
Color : Natural or Black
Warranty: Ten years warranty
 |
Adjustable Solar Panel Tilt Mount Brackets for Easy Installation ISO9001/CE Certified
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Trip solar |
| Model Number: | / |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $8.59/sets 1-499 sets |
| Packaging Details: | Carton/Pallet |
| Supply Ability: | 10000 Set/Sets per Month |
|
Detail Information |
|||
| Wind Load: | 60M/s | Snow Load: | 1.5KN/m2 |
|---|---|---|---|
| Warranty: | 10 Years | Surface Treatment: | Anodized |
| Material: | AL6005-T5 | Application: | PV Solar Panel Installation |
| Color: | Silver Or Black | Installation Site: | Roof, Ground, RV And So On |
| Certificate: | ISO9001/CE | Service Life: | 25YRS |
| MOQ: | 1 Pcs | Tilt Angle: | 10deg-60deg |
| Packing: | 1set/carton | Keyword: | Easy Installation |
Product Description
Products Description

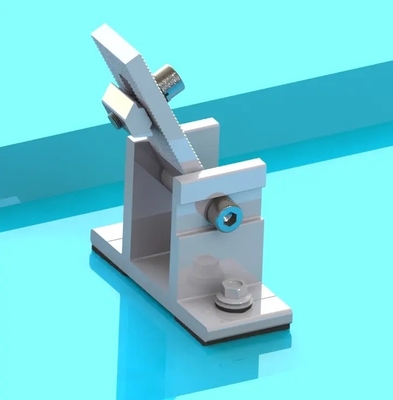

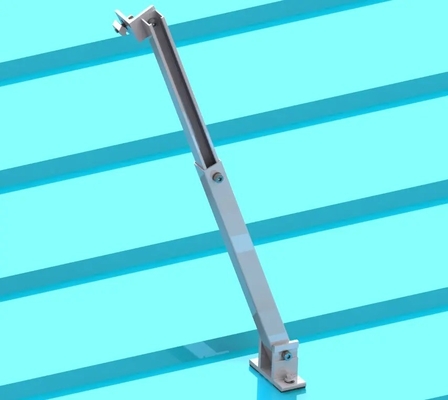

Different adjustable solar bracket
Tile angle: 15- 30 degree
Material: Aluminum
Anti-corrosive: Anodized
Color : Natural or Black
Warranty: Ten years warranty
Feature
* Adjustable degree
* Easy to install
* Flexibility and Compatible
* Flexibility and Compatible
* Stand up to extreme weather

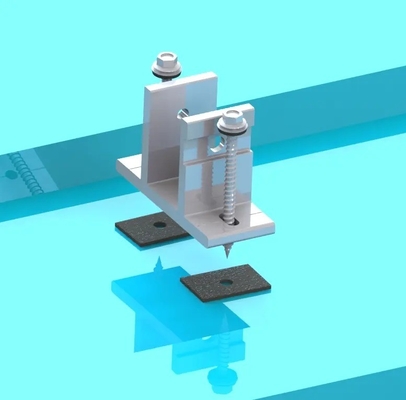

* Water-proof EPDM rubber pad
* Water-proof EPDM rubber pad

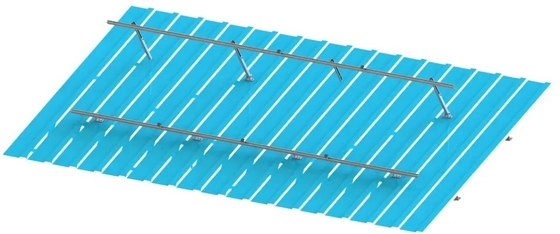

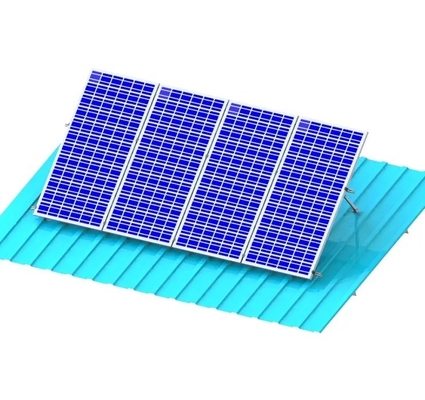

Installation Case
Packaging & Delivery

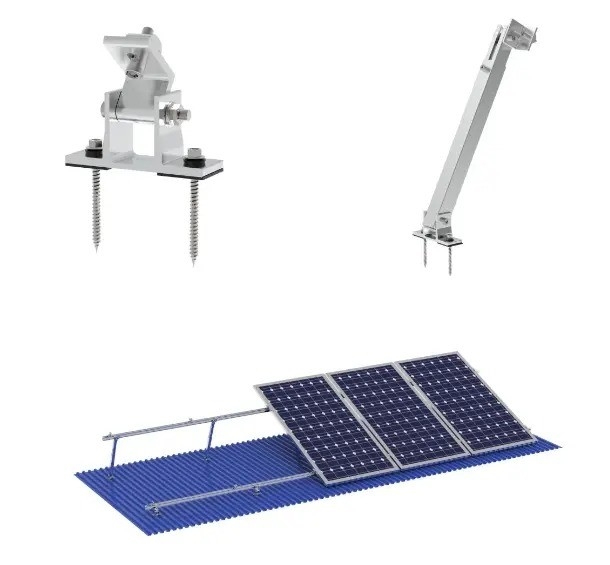

One set includes: 2 front legs+ 2 rear legs+ 8 screws+ 4 EPDM.
Estimated Dimension: 56*12*9 cm / set; 116*105*175 cm/ pallet
Estimated Weight: 2 KG / set; 640 KG / pallet
Different customized Package is also supported.
Estimated Dimension: 56*12*9 cm / set; 116*105*175 cm/ pallet
Estimated Weight: 2 KG / set; 640 KG / pallet
Different customized Package is also supported.
Production & QC
