Aluminum Adjustable Triangle Racks for Flat Roof Solar Panel Energy Bracket Mounting
Product Details:
| Place of Origin: | FUJ |
| Brand Name: | Tripsolar |
| Model Number: | TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $10.30/sets 1-499 sets |
| Packaging Details: | Courier/Cartons/Pallets/LCL or according to customer's choice |
| Supply Ability: | 100000 Pallet/Pallets per Month |
|
Detail Information |
|||
| Wind Load: | 60m/s | Snow Load: | 1.4KN/m2 |
|---|---|---|---|
| Warranty: | 25 Years | Surface Treatment: | Anodized |
| Material: | Aluminum | Application: | PV Solar Panel Installation |
| Color: | Natural Silver | Installation Site: | Open Field |
| Feature: | Quick Installation | Mounting Type: | Roof Ground Solar Mounting System |
| Type: | Pv System Structure | Applicable Module: | Solar Module |
| MOQ: | 1 Set | Size: | Customized Based |
| Port: | Xiamen Port | ||
Product Description
Products Description

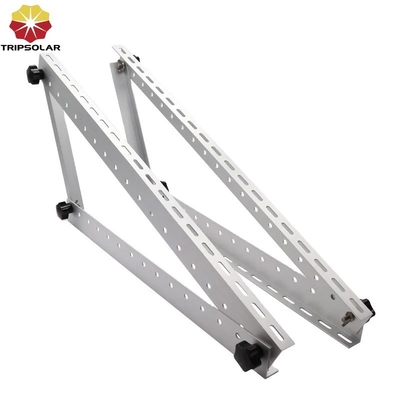

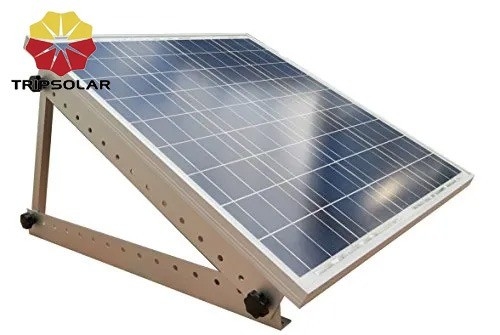

The triangular bracket is easy to install and has strong stability, and is widely used in tile roofs, cement planes, land, RVs, boats and other places.
Three Specifications in stock：
Bolt: 1set/box
1.6X Quincunx bolt bolts, nuts andwashers
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel

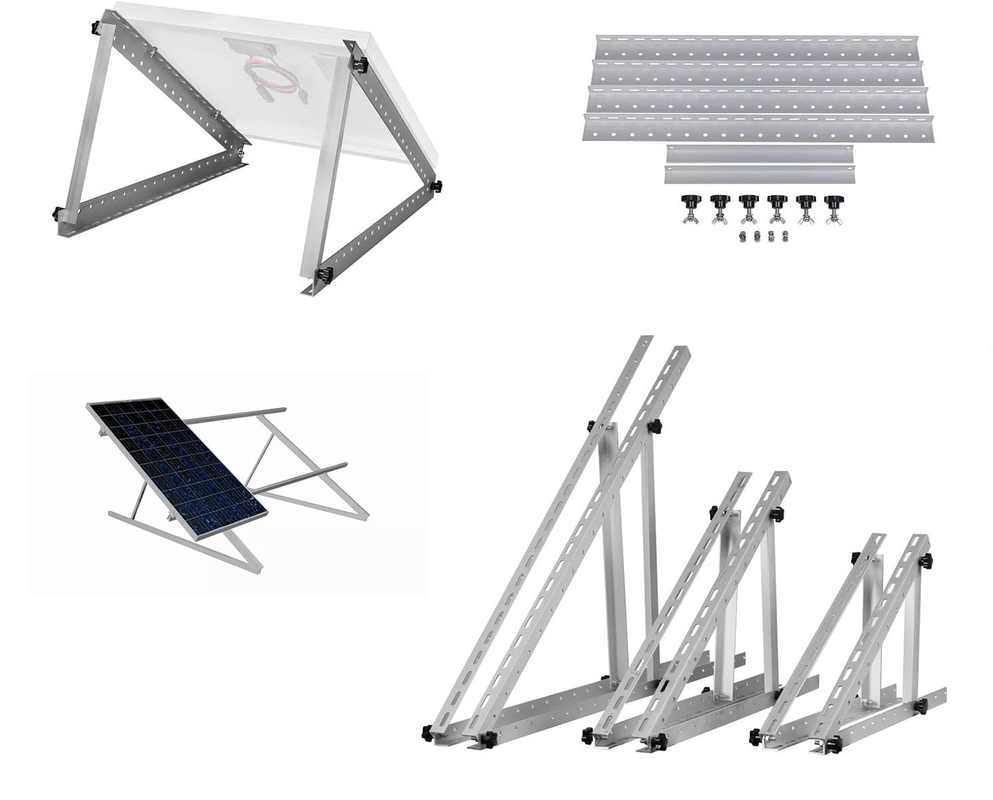

TP-TR01 712*712*375mm
TP-TR02 1040*1040*525mm
TP-TR03 1140*1140*525mm
TP-TR03 1140*1140*525mm
Customization is available.
Bolt: 1set/box
1.6X Quincunx bolt bolts, nuts andwashers
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel

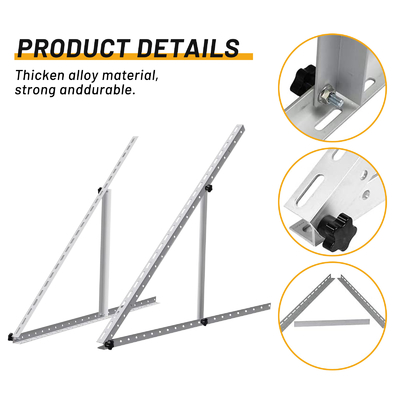

Case&Details
Specification
Place of Origin | Xiamen, China |
Wind Load | up to 60m/s |
Snow Load | up tp 1.5kn/m2 |
Tilt Angle | 0-90 Degree |
Material | Aluminum or AZM |
Surface Treatment | Anodized |
Color | Nature or Black |
Packing | 1 Set/Carton |
Length | 712mm, 1040mm, 1140mm, 1180mm and So On |
Installation Case
Roof
RV
Camping
Ground
Balcony
Boat
Packaging & Delivery

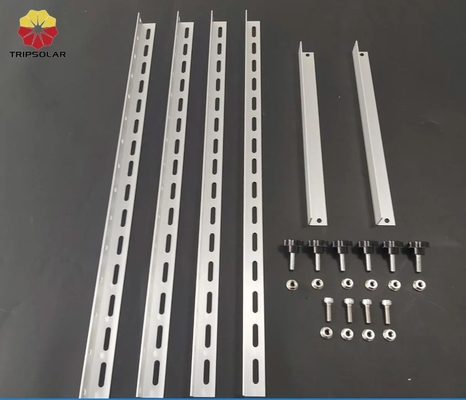

One set includes: 4 Long Rails with Holes + 2 Short Rails + 6 Screws+4 M6*25 SUS304 Bolts
There are three specifications:
1. long rail 1140mm, short rail 525mm;
2. long rail 1040mm, short rail 525mm.
There are three specifications:
1. long rail 1140mm, short rail 525mm;
2. long rail 1040mm, short rail 525mm.
3. long rail 712mm, short rail 375mm
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different combo is also supported.
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different combo is also supported.
Related Products

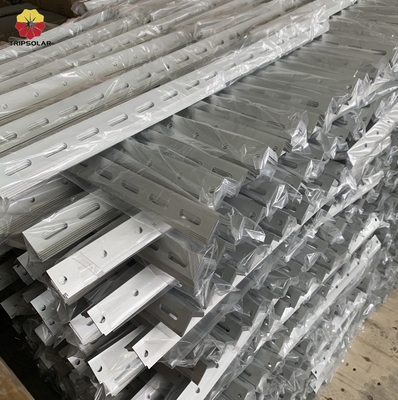

Production & QC
Company Profile
FAQ
Q : Why choose us ?
A : We are professional manufacturer, and we can provide the best product, competitive price and excellent service.
Q : Is customization available ?
A : Yes, according to your detailed drawings you provide or our design made by engineer according to your requirements.
Q : What's your best price?
A : It is according to your quantity and product detail, the price will be favorable with the mass quantity.
Q : What about the delivery time?
A : It depends on your order quantity and requirement. Usually 7-15 working days.
Q : Can we visit your factory to inspect the goods for the order?
A : Welcome to visit our factory to inspect the quality. We sincerely hope to establish a honest business relationship.
If you have any interest in our products, please do not hesitate to contact me.
A : We are professional manufacturer, and we can provide the best product, competitive price and excellent service.
Q : Is customization available ?
A : Yes, according to your detailed drawings you provide or our design made by engineer according to your requirements.
Q : What's your best price?
A : It is according to your quantity and product detail, the price will be favorable with the mass quantity.
Q : What about the delivery time?
A : It depends on your order quantity and requirement. Usually 7-15 working days.
Q : Can we visit your factory to inspect the goods for the order?
A : Welcome to visit our factory to inspect the quality. We sincerely hope to establish a honest business relationship.
If you have any interest in our products, please do not hesitate to contact me.
