AL6005-T5 Solar Panel Tilt Mount Brackets for Home Solar Mounting System 0-60 Degree
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Trip solar |
| Model Number: | / |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $9.90/sets 10-499 sets |
| Packaging Details: | Carton/Pallet |
| Supply Ability: | 10000 Set/Sets per Month |
|
Detail Information |
|||
| Wind Load: | 60M/s | Snow Load: | 1.5KN/m2 |
|---|---|---|---|
| Warranty: | 10 Years | Surface Treatment: | Anodized |
| Product Name: | Solar Adjustable Tri-bracket | Material: | AL6005-T5 |
| Application: | PV Solar Panel Installation | Color: | Silver Black |
| Service Life: | 25 YRS | Certificate: | ISO9001/CE |
| MOQ: | 1 Pcs | Package: | Carton |
| Tilt Angle: | 10-60 Degree | Delivery Time: | Spot |
Product Description
Trip solar——Professional Factory For Solar Energy Products Since 2012
Products Description

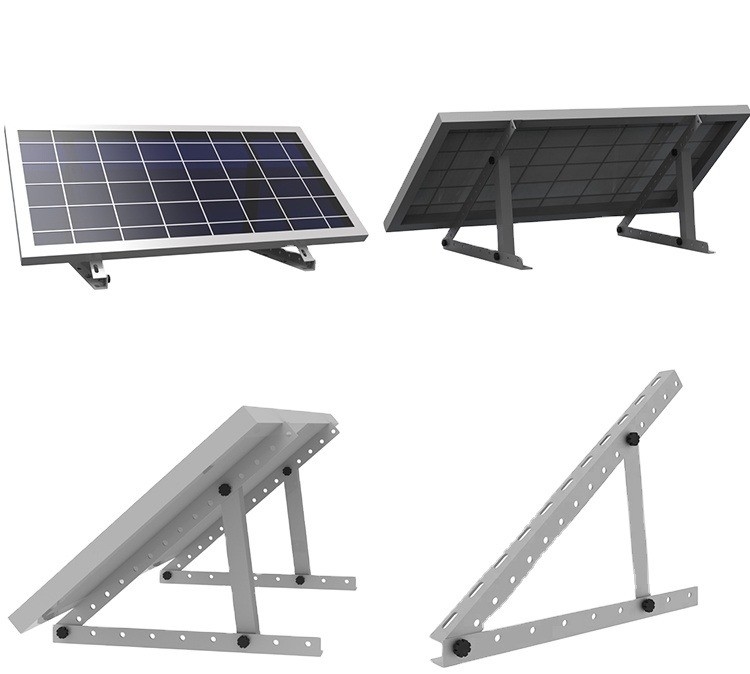

The triangular bracket is easy to install and has strong stability, and is widely used in tile roofs, cement planes, land, RVs, boats and other places.
Its simple and solid triangular structure can make full use of the existing photovoltaic construction site, and the high-efficiency dense components greatly increase the installed capacity, truly achieving efficient utilization, energy saving and emission reduction.
Three Specifications in stock：
TP-TR01: 375*712*712mm
Bolt: set/box
TP-TR02: 525*1040*1040mm
TP-TR03: 525*1140*1140mm
TP-TR03: 525*1140*1140mm
Customization is available.
Bolt: set/box
1.6X Quincunx bolt bolts, nuts andwashers
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel
Product information
Place of Origin | Xiamen, China |
Brand Name | Tripsoalr |
Model | TP-TR |
Wind Load | 60m/s |
Snow Load | 1.5kn/m2 |

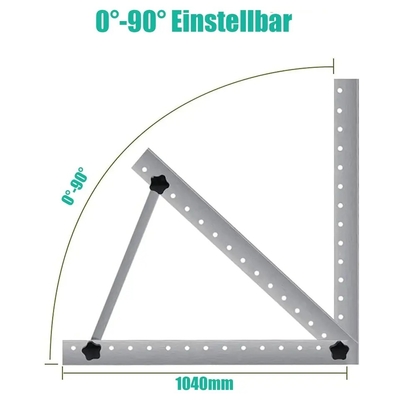

Tilt Angle | 0-90 Degree |
Warranty | 10 YRS |
Material | Aluminum |
Surface Treatment | Anodized |
Color | Nature or Black |
Duration | 25 YRS |
Packing | 1 Set/Carton |
Length | 712mm, 1040mm, 1140mm, 1180mm and So On |
Details
Installation Site
RV
Balcony
Carport
Flat Roof
Camping
Boat
Packaging & Delivery

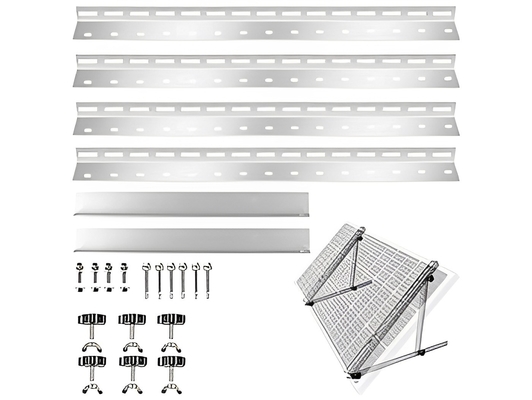

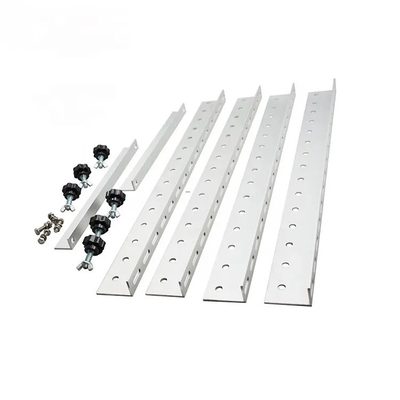

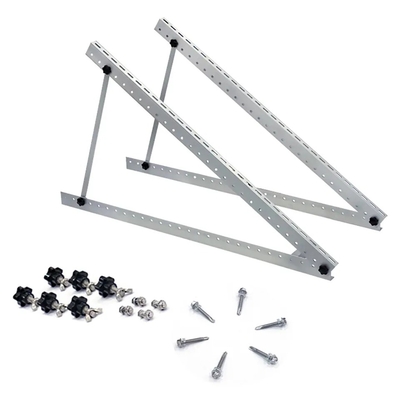

One set includes: 4 Long Rails with Holes + 2 Short Rails + 6 Screws+4 M6*25 SUS304 Bolts
There are three specifications in stock:
1. long rail 1140mm, short rail 525mm
2. long rail 1040mm, short rail 525mm
There are three specifications in stock:
1. long rail 1140mm, short rail 525mm
2. long rail 1040mm, short rail 525mm
3. long rail 712mm, short rail 375mm
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different combo is also supported.
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different combo is also supported.
