Ground Installation Tilt Mount Solar Frame Mounting System with AL6005-T5 Material
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Trip solar |
| Model Number: | / |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $8.96/sets 1-499 sets |
|
Detail Information |
|||
| Wind Load: | 60M/s | Snow Load: | 1.5KN/m2 |
|---|---|---|---|
| Warranty: | 10 Years | Surface Treatment: | Anodized |
| Product Name: | Solar Adjustable Tri-bracket | Material: | AL6005-T5 |
| Application: | PV Solar Panel Installation | Color: | Silver Black |
| Service Life: | 25 YRS | Certificate: | ISO9001/CE |
| MOQ: | 1 Pcs | Package: | Carton |
| Tilt Angle: | 10-60 Degree | Delivery Time: | Spot |
Product Description
Products Description

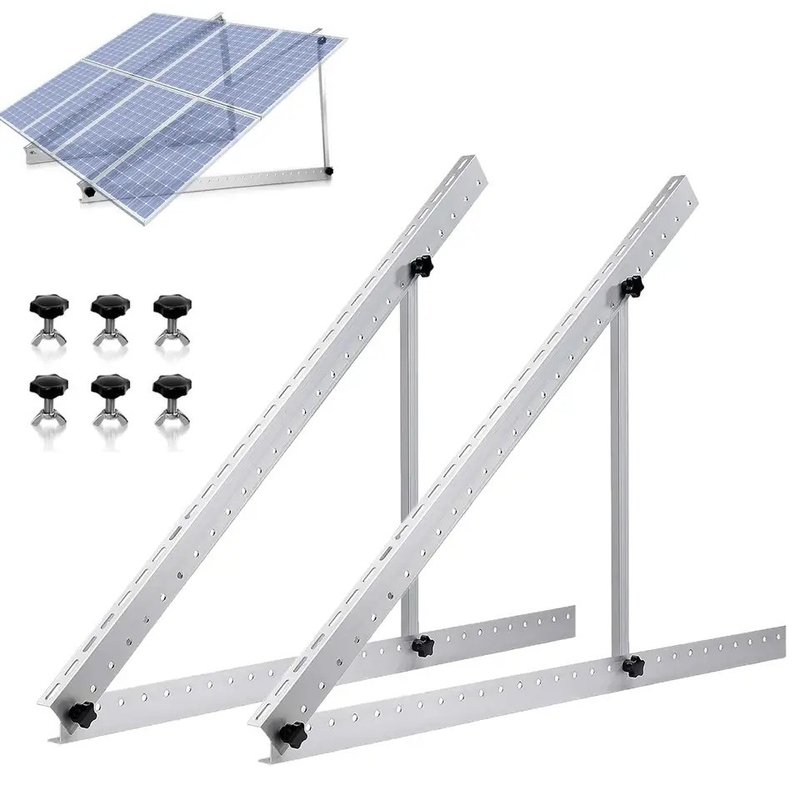

The triangular bracket is easy to install and has strong stability, and is widely used in tile roofs, cement planes, land, RVs, boats and other places.
Three Specifications in stock：
Bolt: 1set/box
1.6X Quincunx bolt bolts, nuts andwashers
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel
TP-TR01 712*712*375mm
TP-TR02 1040*1040*525mm
TP-TR03 1140*1140*525mm
TP-TR03 1140*1140*525mm
Customization is available.
Bolt: 1set/box
1.6X Quincunx bolt bolts, nuts andwashers
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel

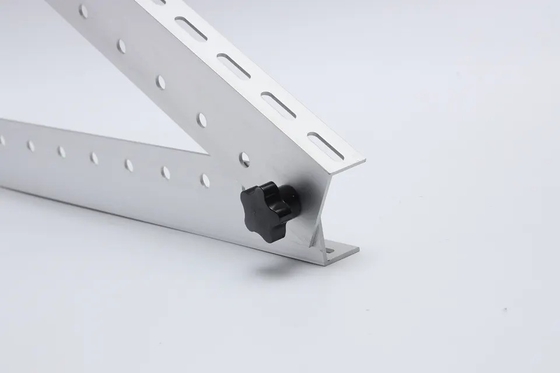

Case&Details
Specification
Place of Origin | Xiamen, China |
Wind Load | up to 60m/s |
Snow Load | up tp 1.5kn/m2 |

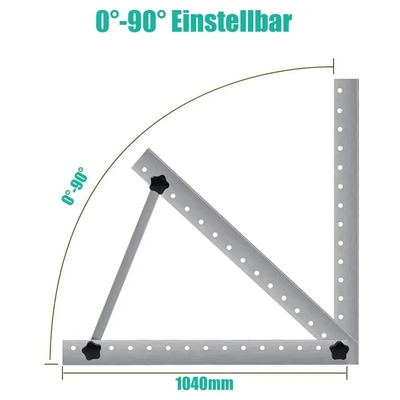

Tilt Angle | 0-90 Degree |
Material | Aluminum or AZM |
Surface Treatment | Anodized |
Color | Nature or Black |
Packing | 1 Set/Carton |
Length | 712mm, 1040mm, 1140mm, 1180mm and So On |

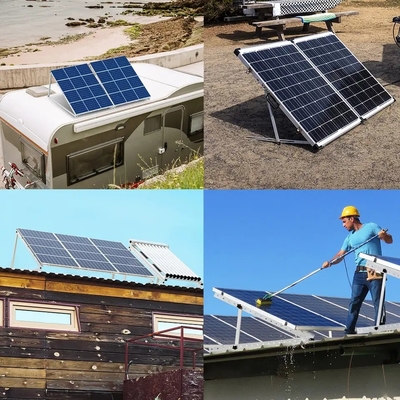

Installation Case
Roof
RV
Camping

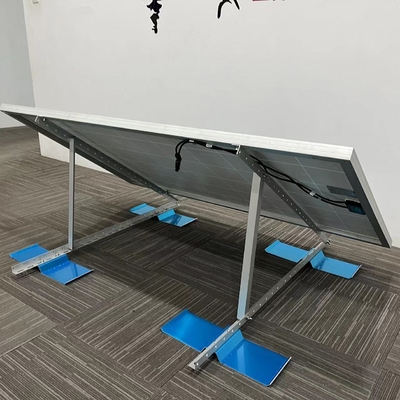

Ground
Balcony
Boat
Packaging & Delivery
One set includes: 4 Long Rails with Holes + 2 Short Rails + 6 Screws+4 M6*25 SUS304 Bolts
There are three specifications:
1. long rail 1140mm, short rail 525mm;
2. long rail 1040mm, short rail 525mm.
There are three specifications:
1. long rail 1140mm, short rail 525mm;
2. long rail 1040mm, short rail 525mm.
3. long rail 712mm, short rail 375mm
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different combo is also supported.
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different combo is also supported.
