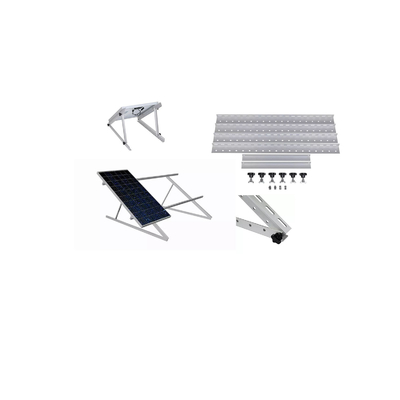

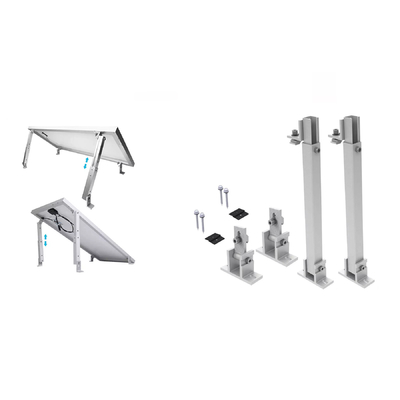

AL6005-T5 Aluminum Triangle Solar Panel Support Frame Mounting Bracket for PV Installation
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Trip solar |
| Model Number: | / |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $9.90/sets 1-499 sets |
| Packaging Details: | Carton/Pallet |
| Supply Ability: | 10000 Set/Sets per Month |
|
Detail Information |
|||
| Wind Load: | 60M/s | Snow Load: | 1.5KN/m2 |
|---|---|---|---|
| Warranty: | 10 Years | Surface Treatment: | Anodized |
| Product Name: | Solar Adjustable Bracket, Triangular Bracket | Material: | AL6005-T5 |
| Application: | PV Solar Panel Installation | Color: | Silver Black |
| Service Life: | 25 YRS | Certificate: | ISO9001/CE |
| MOQ: | 1 Pcs | Package: | Carton |
| Tilt Angle: | 10-60 Degree | Delivery Time: | Spot |
| Port: | Xiamen Port | ||
Product Description
Products Description
Length:
TP-TR01 375*712*712mm
TP-TR02 525*1040*1040mm
TP-TR03 525*1140*1140mm
Bolt: 1set/box
1.6X Quincunx bolt bolts, nuts andwashers
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel
TP-TR03 525*1140*1140mm
Bolt: 1set/box
1.6X Quincunx bolt bolts, nuts andwashers
2.4X M6*25 SUS304 bolts and nuts to connect the solar panel
Specification
Case&Details

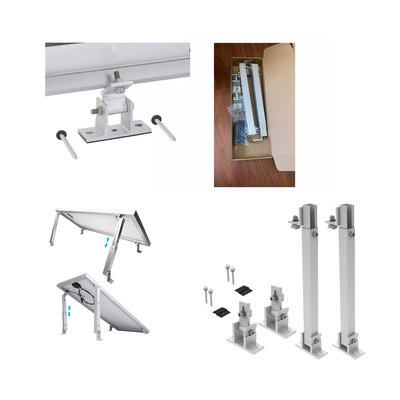

Packaging & Delivery

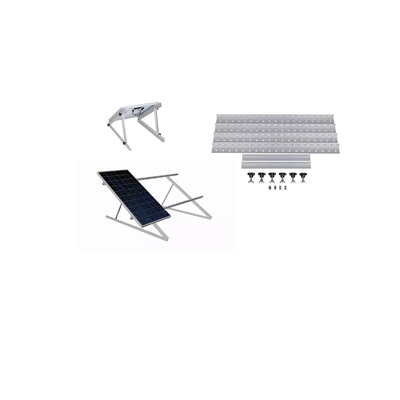

One set includes: 4 Long Rails with holes + 2 short rails + 6 screws+4X M6*25 SUS304 bolts

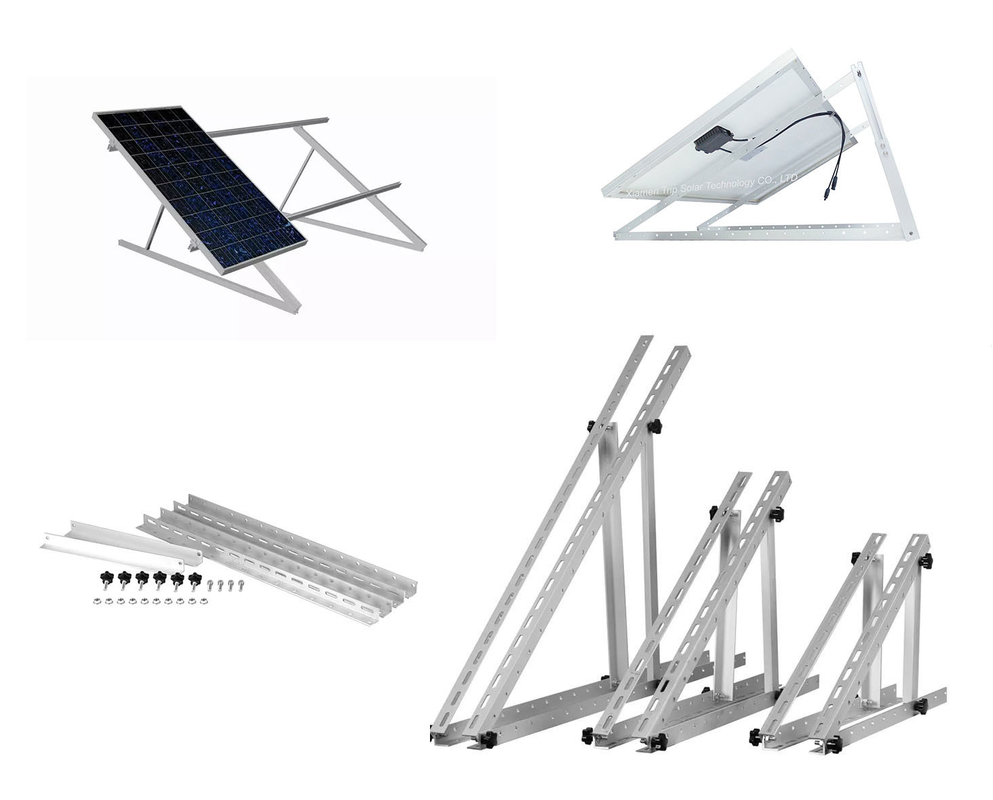

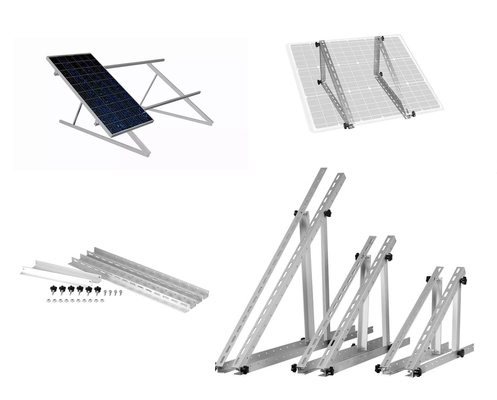

There are Three specifications:
1. long rail 1140mm, short rail 525mm;
2. long rail 1040mm, short rail 525mm.
There are Three specifications:
1. long rail 1140mm, short rail 525mm;
2. long rail 1040mm, short rail 525mm.
3. long rail 712mm, short rail 375mm
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 1: 118*7*6 cm / set; 2.15 KG / set
Estimated Dimension 2: 108*7*6 cm / set; 1.95 KG / set
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different customized package is also supported.
Estimated Dimension 3: 81*7*6 cm / set; 1.5 KG / set
Different customized package is also supported.
