Micro Inverter Solar System with 26.6A/8.7A Output Current and WIFI/RS485 Communication
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Tripsolar |
| Model Number: | TP-MI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $68.17 - $225.02/sets |
| Packaging Details: | Courier/Cartons/Pallets/LCL or according to customer's choice |
| Supply Ability: | 100000 Pallet/Pallets per Month |
|
Detail Information |
|||
| Input Voltage: | 33-60V And So On | Output Voltage: | 120/230V Auto Switch And So On |
|---|---|---|---|
| Output Current: | 26.6A/8.7A And So On | Output Frequency: | 47~52/57~62HZ And So On |
| Output Type: | Single | Size: | 370mm*300mm*41.6mm And So On |
| Type: | DC/DC Converters | Inverter Efficiency: | >94% |
| Certificate: | VDE, CEC, CE, INMETOR, ETL | Warranty: | 12 Months |
| Weight: | 3.6kg And So On | Product Name: | Micro Inverter |
| Application: | Solar Power System | Protection: | IP65 |
| Inverter Type: | On-grid Solar Power Inverter | Communication: | WIFI / RS485 |
| Rated Power: | 600W | Keyword: | Inverter Solar |
| Feature: | Energy Saving Solar Inverter | Color: | Silver |
| Cooling: | Smart Cooling | Port: | Xiamen Port |
Product Description

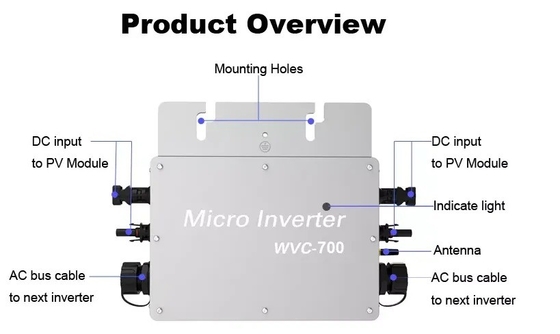

Products Description
Parameter
Take 600W as an example
Model | WVC-600(R3) | |||
Maximum input power | 2*375W | |||
Output voltage mode | 120V/230V automatic switching | |||
Solar panel open circuit voltage range | 30-60V | |||
Peak power tracking voltage | 22-60V | |||
Min/Max starting voltage | 22-60V | |||
Maximum DC short circuit current | 30A | |||
Output parameters | @120V | @230V | ||
Peak output power | 630Watt | 630Watt | ||
Rated output power | 600Watt | 600Watt | ||
Rated output current | 5A | 2.6A | ||
Rated voltage range | 80-160VAC | 180-280VAC | ||
Rated frequency range | 48-51Hz/58-61Hz | 48-51Hz/58-61Hz | ||
Power Factor | >99% | >99% | ||
Number of circuit connections per string | 6 sets (single phase) | 12 sets (single phase) | ||
Output efficiency | @120V | @230V | ||
Static MPPT efficiency | 99.5% | 99.5% | ||
Maximum output efficiency | 95% | 95% | ||
Power loss at night | <1W | <1W | ||
Total harmonic distortion | <5% | <5% | ||
Appearance and technical characteristics | ||||
Range of working temperature | -40 ℃ to +65 ℃ | |||
Size(mm) | 283*200*42 | |||
Net weight | 1.56kg | |||
Waterproof level | IP65 | |||
Cooling method | Self-cooling | |||
Communication mode | 433Mhz communication mode | |||
Power transmission mode | Reverse transmission, load priority | |||
Surveillance system | Mobile App, Browser | |||
Electromagnetic Compatibility | EN50081.Party EN50082.Party 1 | |||
Grid disturbance | EN61000-3-2 Safety Regulation 62109 | |||
Grid detection | DIN VDE 0126 | |||
Certificate | CE, CEC, VDE, appearance patent | |||
Package weight | ||||
Specification | Single (packaging) | FCL (15 units) | ||
Gross weight | 2.2Kg | 4.5Kg | ||
Size(mm) | 342*375*140 | 440*380*260 | ||

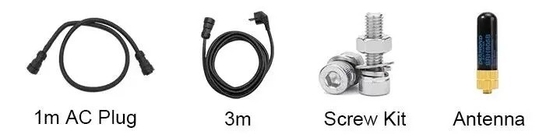

Orther Specifications
Test Photo
Production

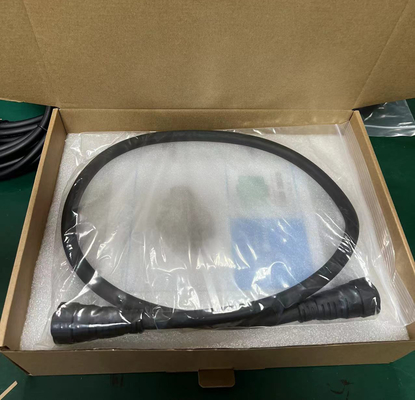

Packaging & Delivery
