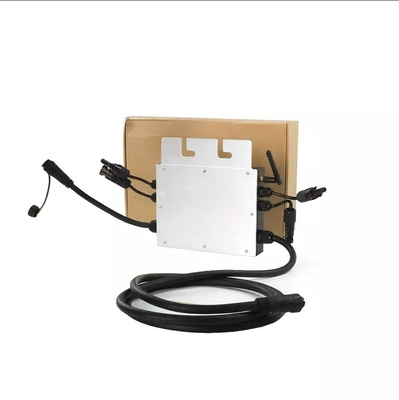

Compact Design 120V 230V PV Solar Micro Inverter Grid Tie System with IP65 Protection
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Tripsolar |
| Model Number: | TP-MI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $239.38/sets |
| Packaging Details: | Carton/Pallet |
|
Detail Information |
|||
| Output Power: | Other | Input Voltage: | 33-60V And So On |
|---|---|---|---|
| Output Voltage: | 120/230V Auto Switch And So On | Output Current: | 26.6A/8.7A And So On |
| Output Frequency: | 47~52/57~62HZ And So On | Output Type: | Single |
| Size: | 370mm*300mm*41.6mm And So On | Type: | DC/DC Converters |
| Inverter Efficiency: | >94% | Certificate: | VDE, CEC, CE, INMETOR, ETL |
| Warranty: | 12 Months | Weight: | 3.6kg And So On |
| Product Name: | Micro Inverter | Application: | Solar Power System |
| Protection: | IP65 | Communication: | WIFI / RS485 |
| Color: | Silver Or Customization | OEM: | Avaliable |
| MPPT Efficiency: | 99. 9% | Efficiency: | 95% |
| Installation Style: | Home Industry | Cooling: | Smart Cooling |
Product Description
Trip Solar--A Professional Wholesale Manufacturer Since 2012
Products Description
Parameter
Take 600W as an example
|
Model
|
WVC-600(R3)
|
|
||
|
Maximum input power
|
2*375W
|
|
||
|
Output voltage mode
|
120V/230V automatic switching
|
|
||
|
Solar panel open circuit voltage range
|
30-60V
|
|
||
|
Peak power tracking voltage
|
22-60V
|
|
||
|
Min/Max starting voltage
|
22-60V
|
|
||
|
Maximum DC short circuit current
|
30A
|
|
||
|
Output parameters
|
@120V
|
@230V
|
||
|
Peak output power
|
630Watt
|
630Watt
|
||
|
Rated output power
|
600Watt
|
600Watt
|
||
|
Rated output current
|
5A
|
2.6A
|
||
|
Rated voltage range
|
80-160VAC
|
180-280VAC
|
||
|
Rated frequency range
|
48-51Hz/58-61Hz
|
48-51Hz/58-61Hz
|
||
|
Power Factor
|
>99%
|
>99%
|
||
|
Number of circuit connections per string
|
6 sets (single phase)
|
12 sets (single phase)
|
||
|
Output efficiency
|
@120V
|
@230V
|
||
|
Static MPPT efficiency
|
99.5%
|
99.5%
|
||
|
Maximum output efficiency
|
95%
|
95%
|
||
|
Power loss at night
|
<1W
|
<1W
|
||
|
Total harmonic distortion
|
<5%
|
<5%
|
||
|
Appearance and technical characteristics
|
|
|
||
|
Range of working temperature
|
-40 ℃ to +65 ℃
|
|
||
|
Size(mm)
|
283*200*42
|
|
||
|
Net weight
|
1.56kg
|
|
||
|

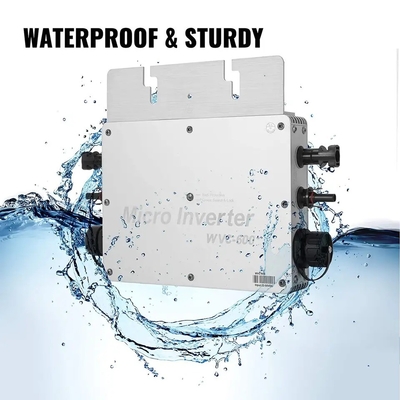

Waterproof level
|
IP65
|
|
||
|
Cooling method
|
Self-cooling
|
|
||
|
Communication mode
|
433Mhz communication mode
|
|
||
|
Power transmission mode
|
Reverse transmission, load priority
|
|
||
|
Surveillance system
|
Mobile App, Browser
|
|
||
|
Electromagnetic Compatibility
|
EN50081.Party EN50082.Party 1
|
|
||
|
Grid disturbance
|
EN61000-3-2 Safety Regulation 62109
|
|
||
|
Grid detection
|
DIN VDE 0126
|
|
||
|
Certificate
|
CE, CEC, VDE, appearance patent
|
|
||
|
Package weight
|
|
|
||
|
Specification
|
Single (packaging)
|
FCL (15 units)
|
||
|
Gross weight
|
2.2Kg
|
4.5Kg
|
||
|
Size(mm)
|
342*375*140
|
440*380*260
|
||
Other Specifications
Test Photo
Production

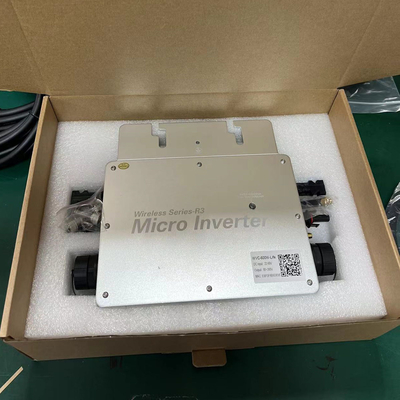

Packaging & Delivery
